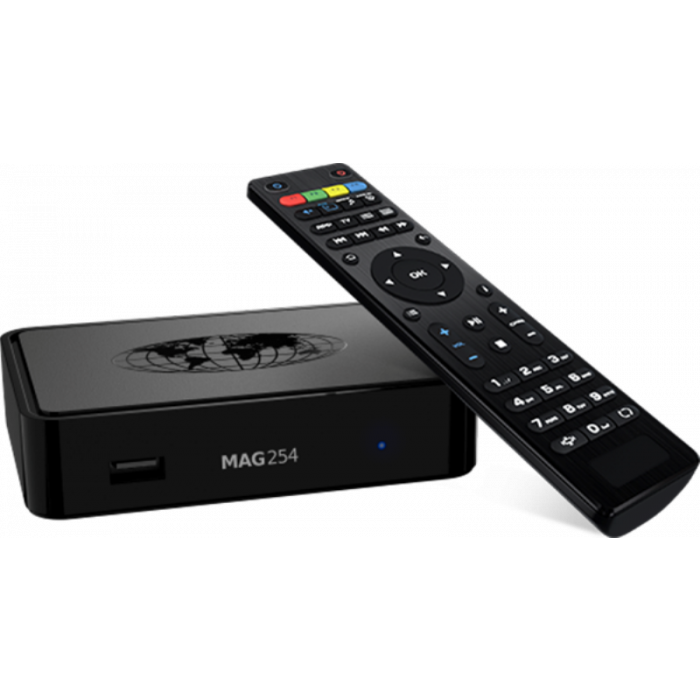

IPTV SET-TOP BOX IPTV-MAG254

Hardware
Processor: STiH207
RAM: 512 Мb
Flash memory: 256 Mb

Software
Operating system: Linux 2.6.23
Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option: Secure Media
Middleware supported: Stalker, Netup, SmartLabs, Netris, Beenius

Interfaces
Audio output S/PDIF HDMI 1.4-output Composite + stereo A/V output Ethernet 100 Mb/s USB 2.0 (WiFi-adapter can be connected)

Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices

Audio&Video
Audio сodecs: MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital (optional), DTS (optional)
Audio formats: MP3, MPA, M4A, WMA (optional), Ogg, WAV
Video modes : 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
Video сodecs: MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit/s and above)
Video containers: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats: JPEG, PNG, BMP, GIF, RAW
Subtitles: DVB, SRT, text MKV
Playlist formats: M3U
