Дънна платка Asus TUF GAMING H570-PRO LGA 1200
Изчерпано количество
SKU
TUF H570-PRO

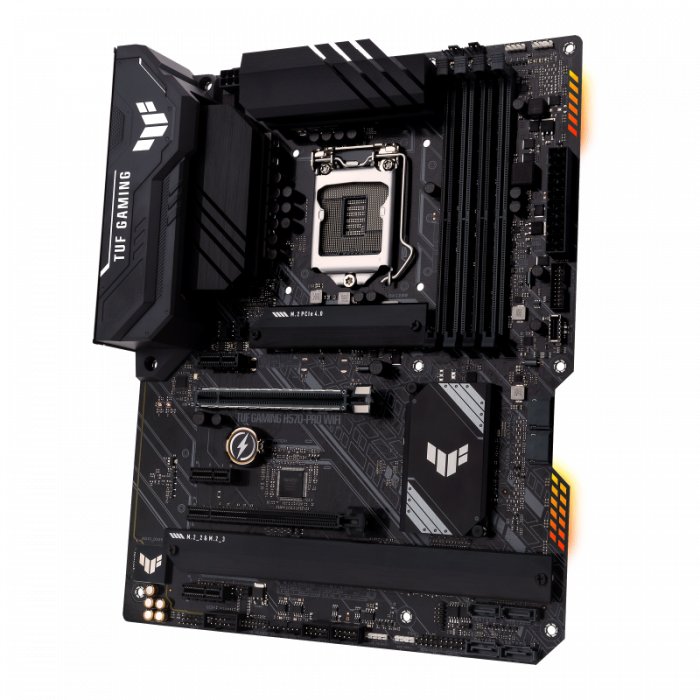

Дънна платка Asus TUF GAMING H570-PRO LGA 1200
- ➤ MOTHERBOARD ASUS TUF GAMING H570-PRO LGA 1200 CPU INTEL® SOCKET LGA1200 FOR 11TH GEN INTEL® CORE ™ PROCESSORS & 10TH GEN INTEL® CORE ™
- ➤ PENTIUM® GOLD AND CELERON® PROCESSORS SUPPORTS INTEL® 14 NM CPU SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 ** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. INTEL® H570 CHIPSET DDR4 MEMORY CHIPSET 5000 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC ) / 3333 (OC) / 3200/2933/2800/2666/2400/2133 MHZ NON-ECC
- ➤ UN-BUFFERED MEMORY * DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * 11TH GEN INTEL® PROCESSORS SUPPORT 3200/2933/2800/2666/2400/2133 NATIVELY. * 10TH GEN INTEL® CORE ™ I7 / I9 PROCESSORS SUPPORT 2933/2800/2666/2400/2133 NATIVELY
- ➤ OTHERS WILL RUN AT THE MAXIMUM TRANSFER RATE OF DDR4 2666MHZ. * REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS)
- ➤ AND MEMORY FREQUENCY SUPPORT DEPENDS ON THE CPU TYPES. GRAPHICS 1 X DISPLAYPORT 1.4 1 X HDMI 2.0 *** * GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. ** INTEL® 11TH & 10TH PROCESSORS SUPPORT DISPLAYPORT 1.4 WITH MAX. RESOLUTION OF 4096 X 2304 @ 60HZ. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. *** ONLY INTEL® 11TH PROCESSORS
- ➤ HDMI SUPPORT ™ 2.0 WITH MAX. RESOLUTION OF 4K @ 60HZ
- ➤ OTHERS WOULD ONLY SUPPORT HDMI ™ 1.4 WITH MAX. RESOLUTION OF 4K @ 30HZ .PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATE. EXPANSION SLOTS INTEL® 11TH & 10TH GEN PROCESSORS 1 X PCIE 4.0 / 3.0 X16 SLOT * - INTEL® 11TH PROCESSORS SUPPORT PCIE 4.0 X16 - INTEL® 10TH PROCESSORS SUPPORT PCIE 3.0 X16 INTEL® H570 CHIPSET 1 X PCIE 3.0 X16 SLOT (SUPPORTS X4 MODE ) 3 X PCIE 3.0 X1 SLOTS * ENABLE RST PCIE STORAGE REMAPPING FOR PCH ATTACHED PCIE SLOTS TO ACTIVATE INTEL® OPTANE MEMORY. STORAGE TOTAL SUPPORTS 3 X M.2 SLOTS AND 6 X SATA 6GB / S PORTS INTEL®11TH GEN PROCESSORS M.2_1 SLOT (KEY M)
- ➤ TYPE 2242/2260/2280 - ONLY INTEL® 11TH GEN PROCESSORS SUPPORT PCIE 4.0 X4 MODE
- ➤ THIS SLOT WILL BE DISABLED FOR OTHER INTEL® H570 CPUS M.2_2 SLOT (KEY M)
- ➤ TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 3.0 X4 & SATA MODES) *** M.2_3 SLOT (KEY M)
- ➤ TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X4 MODE) 6 X SATA 6GB / S PORTS * RAID FUNCTION FOR PCIE MODE SSD IN INTEL® RAPID STORAGE TECHNOLOGY IS AVAILABLE WITH EITHER 1. INTEL® SSDS INSTALLED IN BOTH CPU-ATTACHED AND PCH -ATTACHED SLOTS
- ➤ OR 2. ANY OTHER 3RD PARTY SSDS INSTALLED IN PCH- ATTACHED SLOTS. ** TO ENABLE INTEL® OPTANE ™ MEMORY (HYBRID STORAGE DEVICE)
- ➤ IT MUST BE INSTALLED IN PCH-ATTACHED SLOTS WITH INTEL® RAPID STORAGE TECHNOLOGY. *** M.2_2 SHARES BANDWIDTH WITH SATA6G_2. WHEN M.2_2 RUNS SATA MODE
- ➤ SATA6G_2 WILL BE DISABLED. ETHERNET 1 X REALTEK 2.5GB ETHERNET USB REAR USB: TOTAL 8 PORTS 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 2 X USB 3.2 GEN 2 PORTS (2 X TYPE-A) 1 X USB 3.2 GEN 1 PORT (1 X TYPE-A) 4 X USB 2.0 PORTS (4 X TYPE-A) 1 X USB 3.2 GEN 1 CONNECTOR (USB TYPE-C® SUPPORTS) 1 X USB 3.2 GEN 1 ADDITIONAL HEADER SUPPORTS 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS REALTEK ALC S1200A 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC * - SUPPORTS: JACK-DETECTION
- ➤ MULTI-STREAMING
- ➤ FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT / 192 KHZ PLAYBACK AUDIO FEATURES - AUDIO SHIELDING - REAR OPTICAL S / PDIF OUT PORT - PREMIUM JAPANESE AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS - AUDIO COVER HTTPS://WWW.ASUS.COM/MOTHERBOARDS-COMPONENTS/MOTHERBOARDS/ALL- SERIES / TUF-GAMING- H570-PRO / TECHSPEC /
| Тип продукт | Дънна платка |
|---|---|
| Производител | ASUS |
| Общ брой слотове за памет | 4 |
| Гаранционни условия (месец) | 36 |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | ASUS |
| Общ брой слотове за памет | 4 |
| Гаранционни условия (месец) | 36 |
