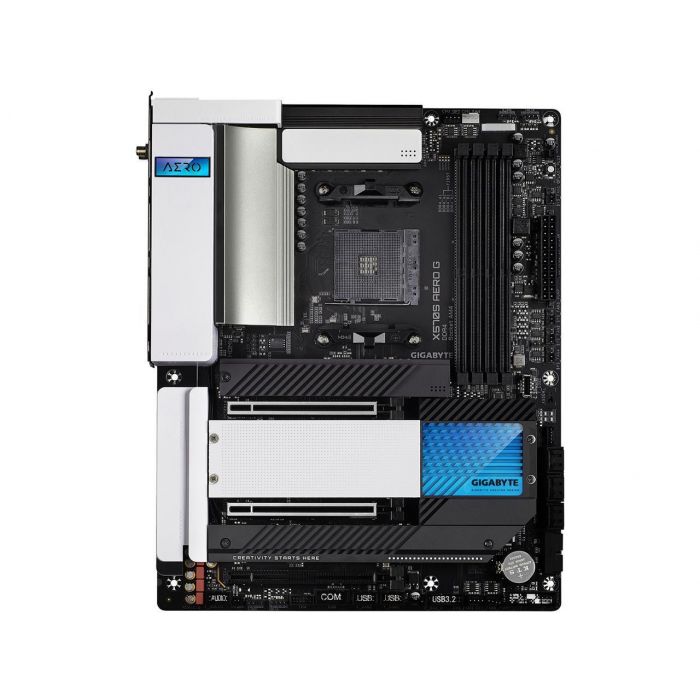

Дънна платка Gigabyte X570S AERO G Socket AM4
Изчерпано количество
SKU
X570S AERO G
- ➤ MOTHERBOARD GIGABYTE X570S AERO G AM4 CPU AMD SOCKET AM4
- ➤ SUPPORT FOR: AMD RYZEN ™ 5000 SERIES PROCESSORS / AMD RYZEN ™ 5000 G-SERIES PROCESSORS / AMD RYZEN ™ 4000 G-SERIES PROCESSORS / AMD RYZEN ™ 3000 SERIES PROCESSORS / AMD RYZEN ™ 3000 G-SERIES PROCESSORS / AMD RYZEN ™ 2000 SERIES PROCESSORS / AMD RYZEN ™ 2000 G-SERIES PROCESSORS (PLEASE REFER TO CPU SUPPORT LIST FOR MORE INFORMATION.) CHIPSET AMD X570 MEMORY 4 X DDR4 DIMM SOCKETS SUPPORTING UP TO 128 GB ( 32 GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY DUAL CHANNEL MEMORY ARCHITECTURE SUPPORT FOR DDR4 5400 (O.C.) / 5300 (O.C.) / 5200 (O.C.) / 5100 (O.C.) / 4800 (O.C.) / 4600 (O.C.) / 4400 (O.C.) / 4266 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3866 (O.C.) / 3733 (O.C.) / 3600 (O.C.) / 3466 (O.C.) / 3400 (O.C.) / 3200 (O.C.) / 2933/2667 / 2400/2133 MHZ MEMORY MODULES SUPPORT FOR ECC UN-BUFFERED DIMM 1RX8 / 2RX8 MEMORY MODULES * * ECC MEMORY (ECC MODE) SUPPORT VARIES BY CPU SUPPORT FOR NON-ECC UN-BUFFERED DIMM 1RX8 / 2RX8 / 1RX16 MEMORY MODULES SUPPORT FOR EXTREME MEMORY PROFILE (XMP) MEMORY MODULES (PLEASE REFER MEMORY SUPPORT LIST FOR MORE INFORMATION.) ONBOARD GRAPHICS INTEGRATED GRAPHICS PROCESSOR: 1 X USB TYPE-C® PORT
- ➤ SUPPORTING USB TYPE-C® AND DISPLAYPORT VIDEO OUTPUTS AND A MAXIMUM RESOLUTION OF 4096X2304 @ 60 HZ * SUPPORT FOR DRAWING TABLETS AND 20V @ 3A OF POWER DELIVERY. * SUPPORT FOR DISPLAYPORT 1.4 VERSION AND HDCP 2.3 1 X HDMI PORT
- ➤ SUPPORTING A MAXIMUM RESOLUTION OF 4096X2160 @ 60 HZ * SUPPORT FOR HDMI 2.1 VERSION
- ➤ MOTHERBOARD GIGABYTE X570S AERO G AM4 CPU AMD SOCKET AM4
- ➤ SUPPORT FOR: AMD RYZEN ™ 5000 SERIES PROCESSORS / AMD RYZEN ™ 5000 G-SERIES PROCESSORS / AMD RYZEN ™ 4000 G-SERIES PROCESSORS / AMD RYZEN ™ 3000 SERIES PROCESSORS / AMD RYZEN ™ 3000 G-SERIES PROCESSORS / AMD RYZEN ™ 2000 SERIES PROCESSORS / AMD RYZEN ™ 2000 G-SERIES PROCESSORS (PLEASE REFER TO CPU SUPPORT LIST FOR MORE INFORMATION.) CHIPSET AMD X570 MEMORY 4 X DDR4 DIMM SOCKETS SUPPORTING UP TO 128 GB ( 32 GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY DUAL CHANNEL MEMORY ARCHITECTURE SUPPORT FOR DDR4 5400 (O.C.) / 5300 (O.C.) / 5200 (O.C.) / 5100 (O.C.) / 4800 (O.C.) / 4600 (O.C.) / 4400 (O.C.) / 4266 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3866 (O.C.) / 3733 (O.C.) / 3600 (O.C.) / 3466 (O.C.) / 3400 (O.C.) / 3200 (O.C.) / 2933/2667 / 2400/2133 MHZ MEMORY MODULES SUPPORT FOR ECC UN-BUFFERED DIMM 1RX8 / 2RX8 MEMORY MODULES * * ECC MEMORY (ECC MODE) SUPPORT VARIES BY CPU SUPPORT FOR NON-ECC UN-BUFFERED DIMM 1RX8 / 2RX8 / 1RX16 MEMORY MODULES SUPPORT FOR EXTREME MEMORY PROFILE (XMP) MEMORY MODULES (PLEASE REFER MEMORY SUPPORT LIST FOR MORE INFORMATION.) ONBOARD GRAPHICS INTEGRATED GRAPHICS PROCESSOR: 1 X USB TYPE-C® PORT
- ➤ SUPPORTING USB TYPE-C® AND DISPLAYPORT VIDEO OUTPUTS AND A MAXIMUM RESOLUTION OF 4096X2304 @ 60 HZ * SUPPORT FOR DRAWING TABLETS AND 20V @ 3A OF POWER DELIVERY. * SUPPORT FOR DISPLAYPORT 1.4 VERSION AND HDCP 2.3 1 X HDMI PORT
- ➤ SUPPORTING A MAXIMUM RESOLUTION OF 4096X2160 @ 60 HZ * SUPPORT FOR HDMI 2.1 VERSION
- ➤ HDCP 2.3
- ➤ AND HDR. MAXIMUM SHARED MEMORY OF 16 GB AUDIO REALTEK® ALC1220-VB AUDIO CODEC * THE BACK PANEL LINE OUT JACK SUPPORTS DSD AUDIO. SUPPORT FOR DTS: X® ULTRA HIGH DEFINITION AUDIO 2/4 / 5.1 / 7.1-CHANNEL SUPPORT FOR S / PDIF OUT LAN INTEL® 2.5GBE LAN CHIP (2.5 GBPS / 1 GBPS / 100 MBPS) WIRELESS COMMUNICATION MODULE INTEL® WI-FI 6 AX200 (FOR PCB REV. 1.0) WIFI A
- ➤ B
- ➤ G
- ➤ N
- ➤ AC
- ➤ AX
- ➤ SUPPORTING 2.4 / 5 GHZ DUAL-BAND BLUETOOTH 5.2 SUPPORT FOR 11AX 160MHZ WIRELESS STANDARD AND UP TO 2.4 GBPS DATA RATE AMD WI-FI 6E RZ608 (MT7921K) (FOR PCB REV. 1.1) WIFI A
- ➤ B
- ➤ G
- ➤ N
- ➤ AC
- ➤ AX
- ➤ SUPPORTING 2.4 / 5/6 GHZ CARRIER FREQUENCY BANDS BLUETOOTH 5.2 SUPPORT FOR 11AX 80MHZ WIRELESS STANDARD AND UP TO 1.2 GBPS DATA RATE HTTPS : //WWW.GIGABYTE.COM/MOTHERBOARD/X570S-AERO-G-REV-1X/SP#SP
| Тип продукт | Дънна платка |
|---|---|
| Производител | GIGABYTE |
| Общ брой слотове за памет | 4 |
| Гаранционни условия (месец) | 36 |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | GIGABYTE |
| Общ брой слотове за памет | 4 |
| Гаранционни условия (месец) | 36 |
