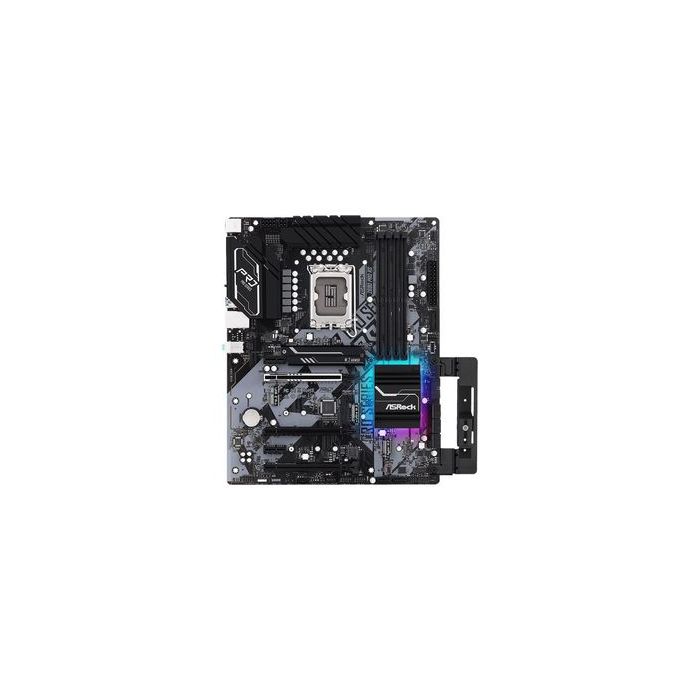

Дънна платка ASRock Z690 Pro RS, ATX - LGA1700 Socket - Z690

Изчерпано количество
SKU
90-MXBGY0-A0UAYZ
Влезте в акаунта си, за да видите актуалните наличности и цени.
ASRock Z690 Pro RS - motherboard - ATX - LGA1700 Socket - Z690
Общи Характеристики
Packaged Quantity1
Процесор
Installed Qty0
Max Supported Qty1
Дънна платка
Form FactorATX
Chipset TypeIntel Z690
Supported RAM TechnologyDDR4 SDRAM
Supported RAM Integrity CheckNon-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed3200 MHz, 5000 MHz (O.C.)
Processor SocketLGA1700 Socket
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)Unbuffered
RAM Slots4 DIMM slots
Интерфейси
Internal Interfaces1 x USB-C Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header, 4 x USB 3.2 Gen 1 - header
RAM
FeaturesIntel Extreme Memory Profiles (XMP) 2.0, Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size128 GB
Видео изход
TypeGraphics adapter (CPU required)
Аудио изход
TypeSound card
Compliant StandardsHigh Definition Audio
Audio CodecRealtek ALC897
AudioHigh Definition Audio (8-channel)
Работа в мрежа
Network ControllerDragon RTL8125BG
Network2.5 Gigabit Ethernet
Слотове за разширение
Expansion Slots1 x CPU, 1 x PCIe 5.0 x16, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode), 1 x M.2 socket (for Intel CNVi wireless module), 1 x PCIe 4.0 x16 (x4 mode)
Интерфейси
Storage InterfacesPCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
StorageHyper M.2 socket, Serial ATA-600 (RAID), Ultra M.2 socket
USB / FireWireUSB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
Storage Ports8 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Ultra M.2
USB / FireWire Ports Configuration (Active)2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software IncludedASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar
Размери и Тегло
Width30,5 cm
Depth24,4 cm
