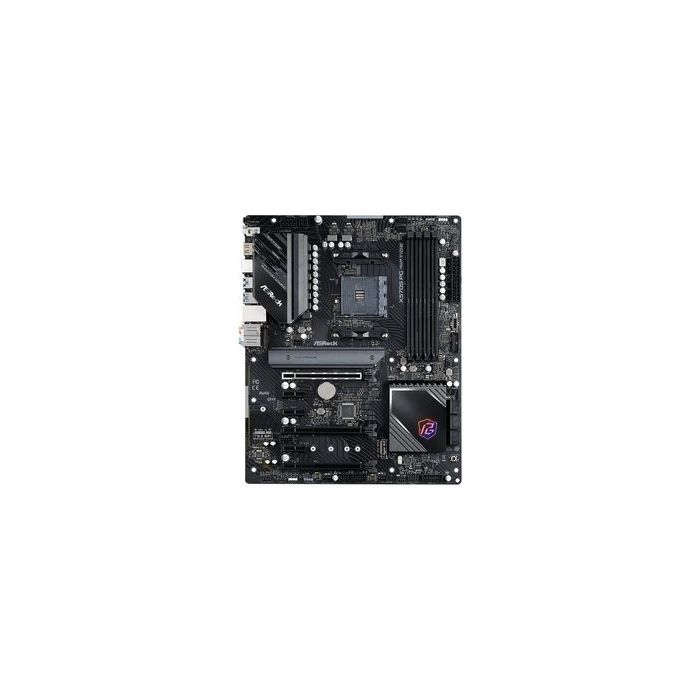

Дънна платка ASRock X570S PG Riptide, ATX - Socket AM4 - AMD X570
Изчерпано количество
SKU
90-MXBHX0-A0UAYZ
ASRock X570S PG Riptide - motherboard - ATX - Socket AM4 - AMD X570
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | ATX | |
| Compatible Processors | Ryzen | |
| Chipset Type | AMD X570 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC, ECC | |
| Supported RAM Speed | 4800 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4866 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.) | |
| Processor Socket | Socket AM4 | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header, 1 x USB-C Gen2 - header, 4 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Intel Extreme Memory Profiles (XMP), Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC897 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Killer E3100G | |
| Network | 2.5 Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x PCIe 4.0 x16 (x2 mode), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode), 3 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series CPUs Pinnacle Ridge); PCIe 3.0 x8 mode (Ryzen series CPUs Picasso)) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2 | |
| Storage Ports | 6 x SATA-600 (RAID), 2 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, ASRock Killer LAN, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 24,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
