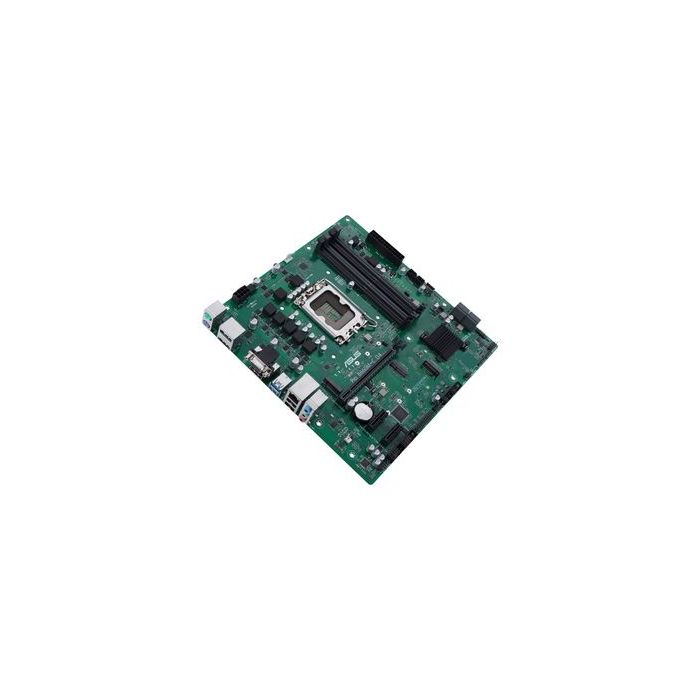

Дънна платка ASUS PRO B660M-C D4-CSM, micro ATX - LGA1700 Socket - B660
Изчерпано количество
SKU
90MB19B0-M0EAYC
ASUS PRO B660M-C D4-CSM - motherboard - micro ATX - LGA1700 Socket - B660
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Micro ATX | |
| Chipset Type | Intel B660 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC | |
| Supported RAM Speed | 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.) | |
| Processor Socket | LGA1700 Socket | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 4 x USB 2.0 - header, 1 x parallel - header, 2 x serial - header, 1 x speaker - header, 1 x USB-C Gen 1 - header, 2 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Intel Extreme Memory Profiles (XMP), Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC897 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network | Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 4.0 x16 | |
| Интерфейси | ||
| Storage Interfaces | PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| RAID Features | Intel Rapid Storage Technology | |
| USB / FireWire | USB 3.2 Gen 1, USB-C Gen1 | |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Размери и Тегло | ||
| Width | 24,4 cm | |
| Depth | 24,4 cm | |
| Обслужване и поддръжка | ||
| Type | 3-year warranty | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
