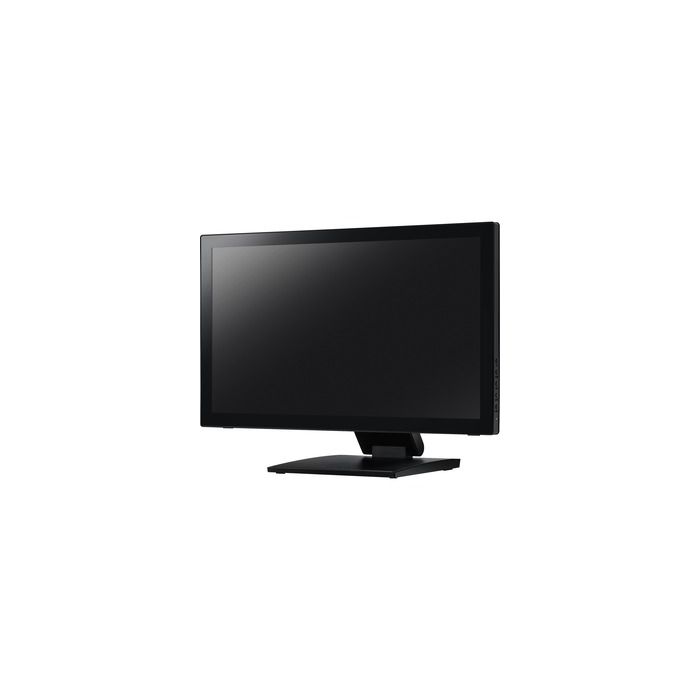

Монитор Ag Neovo TM-22 54.6CM
| Audio | ||
|---|---|---|
| Speakers | Yes | |
| Basic | ||
| Aspect Ratio | 16:9 | |
| Built-in Devices | USB Hub | |
| Product Type | LCD Touchscreen Monitor | |
| Response Time | 3 ms | |
| Speakers | Yes | |
| Touchscreen Type | Projected Capacitive | |
| Brightness | 250 cd/m² | |
| Colour Supported | 16.7 Million Colours | |
| Mount Type | Wall Mountable | |
| Viewable Screen Size | 54.6 cm (21.5) | |
| Maximum Resolution | 1920 x 1080 | |
| Brand Name | AG Neovo | |
| Screen Mode | Full HD | |
| Environmentally Friendly | Yes | |
| USB | Yes | |
| HDMI | Yes | |
| Backlight Technology | LED | |
| VESA Mount Compatible | Yes | |
| VGA | Yes | |
| DisplayPort | Yes | |
| Product Family | TM | |
| Number of HDMI Inputs | 1 | |
| Multi-touch Screen | Yes | |
| Panel Technology | Twisted nematic (TN) | |
| Adjustable Stand Height | Yes | |
| Screen Size Class | 558.80 mm | |
| Stand Adjustments | Tilt | |
| Stand Adjustments | Height | |
| Built-in Devices | ||
| Built-in Devices | USB Hub | |
| General Information | ||
| Product Type | LCD Touchscreen Monitor | |
| Manufacturer Part Number | TM22E011E0100 | |
| Manufacturer Website Address | http://www.agneovo.com | |
| Manufacturer | AG Neovo Technology Corporation | |
| Product Model | TM-22 | |
| Product Name | TM-22 22-Inch 1080p Touch Screen Monitor | |
| Product Series | TM | |
| Brand Name | AG Neovo | |
| Marketing Information | Utilizing projected capacitive (PCAP) 10 point multi-touch technology, the TM-22 22-inch touch screen monitor delivers a smooth and precise touch response. Compatibility with Windows® 7, 8 & 10 touch functions and versatile connectivity makes connecting with media sources and peripheral devices easy. The TM-22 ergonomic monitor stand with tilt flexibility ranging from -5 to 90 degrees guarantees user comfort, making it an ideal choice for public access, like information kiosks and self-check-in kiosks. 10 POINT MULTI-TOUCH MONITOR The TM-22 PCAP touch screen monitor, with 10-point touch capability, offers a smooth and responsive touch experience. Designed with a flat surface and edge-to-edge glass overlay, the TM-22 gives an invitingly modern appeal that fits the professional environment. ERGONOMIC MONITORS MAXIMISE USERS COMFORT With an ergonomic monitor stand, the TM-22 touch screen provides height adjustability and a wide tilt range from -5° to 90° to optimise users' ergonomic working position and productivity. Given a 178-degree wide viewing angle, it allows multiple users to view a single screen comfortably. EASY SYSTEM INTEGRATION Plug-and-play multi-touch capability for systems with Windows 7/8/10, versatile connectivity (DisplayPort, HDMI, VGA) and built-in speakers enable effortless system integration. The built-in USB Port (USB 3.0) also allows a touch monitor easy connect to peripheral devices. MULTIPLE MOUNTING OPTIONS SUPPORT INSTALLATION FLEXIBILITY This 22-inch touch screen monitor can be easily integrated with various mounting options, from its ergonomic monitor stand to wall mounts and other monitor mounts that feature VESA mounting patterns. | |
| Interfaces/Ports | ||
| USB | Yes | |
| HDMI | Yes | |
| VGA | Yes | |
| Number of USB Ports | 4 | |
| DisplayPort | Yes | |
| Number of HDMI Inputs | 1 | |
| Number of USB 3.0 Ports | 4 | |
| Number of VGA Ports | 1 | |
| Number of DisplayPorts | 1 | |
| Miscellaneous | ||
| Environmentally Friendly | Yes | |
| Physical Characteristics | ||
| Weight (Approximate) | 3.90 kg | |
| Height | 318.4 mm | |
| Width | 522.4 mm | |
| Depth | 57.2 mm | |
| Weight with Stand (Approximate) | 6.30 kg | |
| VESA Mount Compatible | Yes | |
| VESA Mount Standard | 100 x 100 | |
| Height with Stand | 387.40 mm | |
| Width with Stand | 522.40 mm | |
| Depth with Stand | 238.50 mm | |
| Power Description | ||
| Frequency | 50 Hz | |
| Frequency | 60 Hz | |
| Energy Efficiency Class (SDR) (from 1st March 2021) | E | |
| Energy Efficiency Class (SDR) (from 1st March 2021) | E | |
| ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021) | 14 kW | |
| ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021) | 14 kW | |
| Technical Information | ||
| Aspect Ratio | 16:9 | |
| Response Time | 3 ms | |
| Response Time | 3 ms | |
| Features | Plug & Play | |
| Features | Flush Screen | |
| Features | Flicker-free | |
| Features | Security Lock | |
| Features | Wide Viewing Angle | |
| Features | Ergonomic Design | |
| Features | ComfortView | |
| Features | Cable Lock Slot | |
| Mount Type | Wall Mountable | |
| Viewable Screen Size | 54.6 cm (21.5) | |
| Screen Mode | Full HD | |
| Horizontal Viewing Angle | 170° | |
| Vertical Viewing Angle | 160° | |
| Backlight Technology | LED | |
| Panel Technology | Twisted nematic (TN) | |
| Horizontal Frequency | 30 kHz to 83 kHz | |
| Horizontal Frequency | 30 kHz to 83 kHz | |
| Adjustable Stand Height | Yes | |
| Vertical Frequency | 50 Hz to 76 Hz | |
| Vertical Frequency | 50 Hz to 76 Hz | |
| Screen Size Class | 558.80 mm | |
| Stand Adjustments | Tilt | |
| Stand Adjustments | Height | |
| Touchscreen Information | ||
| Touchscreen Type | Projected Capacitive | |
| Multi-touch Screen | Yes | |
| Video | ||
| Brightness | 250 cd/m² | |
| Brightness | 250 cd/m² | |
| Color Supported | 16.7 Million Colours | |
| Maximum Resolution | 1920 x 1080 | |
| Dynamic Contrast Ratio | 20,000,000:1 | |
