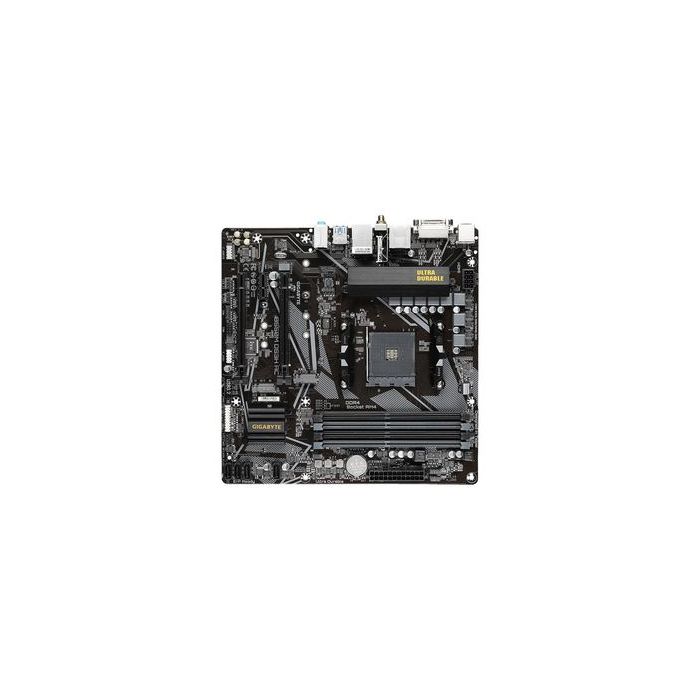

Дънна платка Gigabyte B550M DS3H AC - 1.X - motherboard - micro ATX - Socket AM4 - AMD B550

Изчерпано количество
SKU
B550M DS3H AC
Влезте в акаунта си, за да видите актуалните наличности и цени.
Gigabyte B550M DS3H AC - 1.X - motherboard - micro ATX - Socket AM4 - AMD B550
Общи Характеристики
Packaged Quantity1
Процесор
Installed Qty0
Max Supported Qty1
Дънна платка
Form FactorMicro ATX
Compatible ProcessorsRyzen
Chipset TypeAMD B550
Supported RAM TechnologyDDR4 SDRAM
Supported RAM Integrity CheckNon-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed3200 MHz, 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.)
Processor SocketSocket AM4
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)Unbuffered
RAM Slots4 DIMM slots
Интерфейси
Internal Interfaces1 x audio - header, 1 x serial - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
RAM
FeaturesDual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size128 GB
Видео изход
TypeGraphics adapter (CPU required)
Аудио изход
TypeSound card
Compliant StandardsHigh Definition Audio
Audio CodecRealtek ALC887
AudioHigh Definition Audio (8-channel)
Работа в мрежа
NetworkBluetooth 4.2, Gigabit Ethernet, 802.11a/b/g/n/ac
Слотове за разширение
Expansion Slots1 x CPU, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode)
Интерфейси
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, PCIe 4.0 -connectors: 1 x M.2
StorageSerial ATA-600 (RAID), M.2 socket
USB / FireWireUSB 3.2 Gen 1
Storage Ports4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)4 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)2 x USB 3.2 Gen 1 + 2 x USB 2.0
Софтуер
Software IncludedEasyTune, Xpress Install, GIGABYTE App Center, Norton Internet Security, GIGABYTE Fast Boot, @BIOS, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Размери и Тегло
Width24,4 cm
Depth24,4 cm
