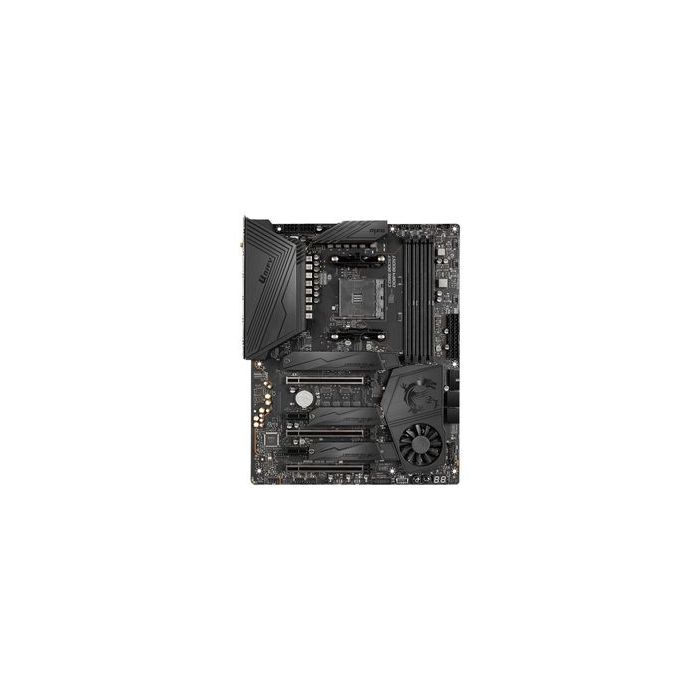

Дънна платка MSI MEG X570 UNIFY - motherboard - ATX - Socket AM4 - AMD X570
Изчерпано количество
SKU
7C35-010R
MSI MEG X570 UNIFY - motherboard - ATX - Socket AM4 - AMD X570
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | ATX | |
| Compatible Processors | Ryzen | |
| Chipset Type | AMD X570 | |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) | |
| Supported RAM Speed | 3200 MHz, 3066 MHz, 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.) | |
| Processor Socket | Socket AM4 | |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 4 x USB 2.0 - header, 1 x USB-C Gen2 - header, 4 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Dual channel memory architecture, Supported ECC modules operate in non-ECC mode, A-XMP support | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | None | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC1220 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Realtek RTL8125 / Intel AX200 | |
| Network | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)), 2 x PCIe 4.0 x1 | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 -connectors: 2 x M.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2 | |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Drivers & utilities | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 24,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | MSI |
