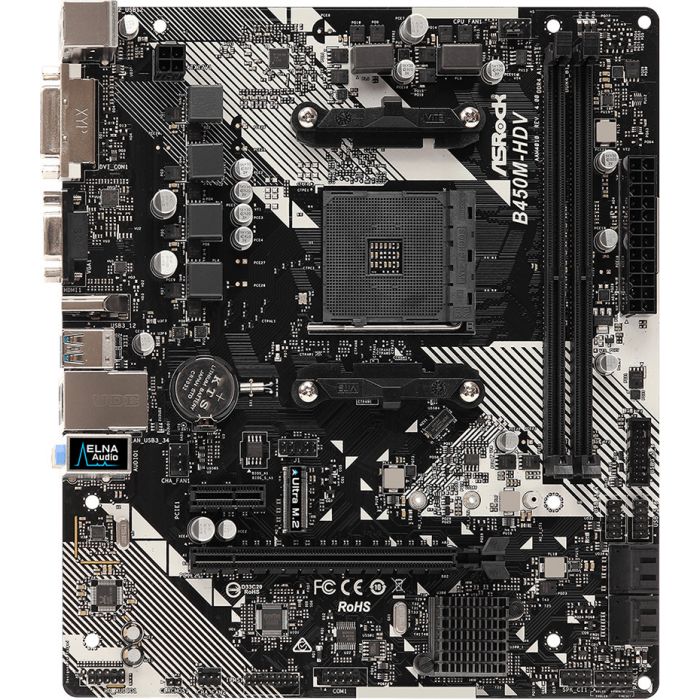

Дънна платка ASRock B450M-HDV R4.0, 2xDDR4, AM4

Сокет: AMD AM4 Чипсет: AMD B450 Процесори: AMD AM4 Socket, 6 Power Phase design, Supports CPU up to 105W Поддържана памет: - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory - Max. capacity of system memory: 32GB - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots Аудио: Realtek ALC887 Audio Codec Мрежова връзка: Realtek RTL8111H Gigabit LAN Вградена графика: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port Слотове за периферия: 1 x PCI Express 3.0 x16 1 x PCI Express 2.0 x1 Интерфейс за данни: - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) * Поддържа NVMe SSD като дискове за начално зареждане; Поддържа ASRock U.2 Kit Изходи на задния панел: - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Вътрешни I/O конектори: - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) Операционна система: Microsoft® Windows® 10 64-bit Форм фактор / Размери: microATX / 9 x 7.9-in, 23 x 20.1 cm Комплекта включва: Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket MPN: B450M-HDV R4.0 Производител: ASRock
