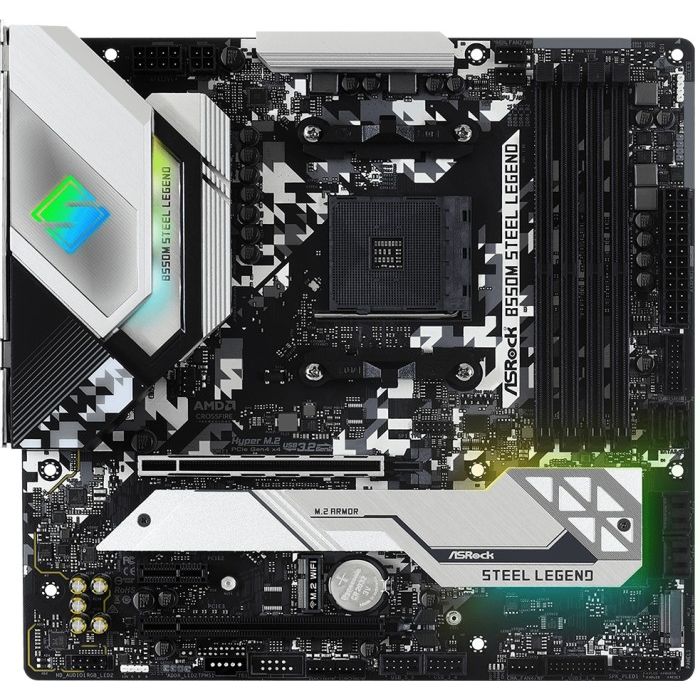

Дънна платка Asrock B550M STEEL LEGEND, DDR4, AM4

Серия
Steel Legend
Процесор
AMD AM4 Ryzen
Чипсет
AMD B550
BIOS
256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support,CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment.
Памет, слотове
4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology.
Аудио
7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Gold Audio Jacks, Nahimic Audio.
Мрежа
2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.
Безжична мрежа
-
Конектори
1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector.
Слотове
AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; - 1 x PCI Express 3.0 x1 Slot; -- Supports AMD Quad CrossFireX and CrossFireX; 15? Gold Contact in VGA PCIe Slot (PCIE1), 1 x M.2 Socket (Key E).
M.2 слот
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s), 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module.
Интерфейс
2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED.
Софтуер
ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC.
Операционна система
Microsoft Windows 10 64-bit
Форм-фактор
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, 2oz Copper PCB.
Специални функции
ASRock USB 3.2 Gen2, ASRock Super Alloy, 2.5G LAN, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop.
Гаранция
36 месеца
