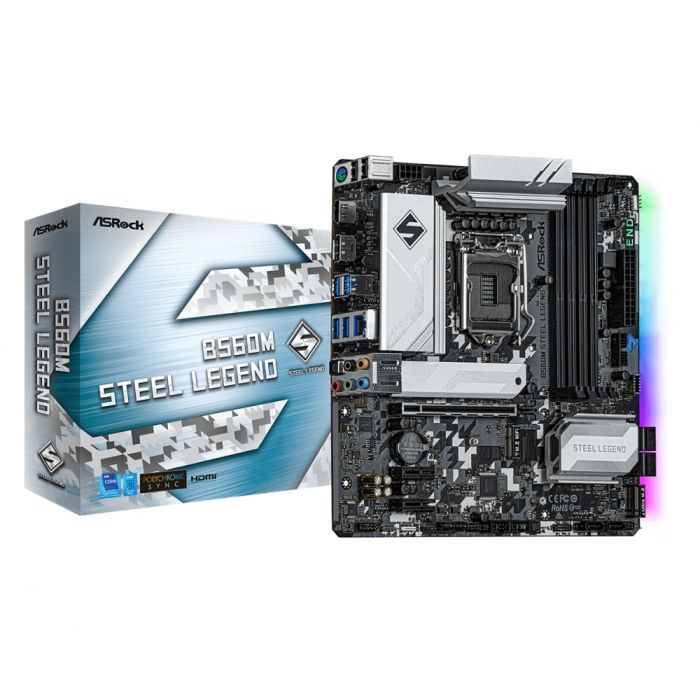

Дънна платка ASRock B560M Steel Legend, s.LGA1200

Серия : Steel Legend

Процесор : Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200); Digi Power design; 10 Power Phase design; Supports Intel Turbo Boost Max 3.0 Technology

Чипсет : Intel B560 BIOS : 128Mb AMI UEFI Legal

BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, Voltage Multi-adjustment

Памет, слотове : 4 x DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology; Max. capacity of system memory: 128GB; Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0

Аудио : 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection, Gold Audio Jacks, 15µ Gold Audio Connector, Nahimic Audio

Мрежа : 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE; Visual User Friendly UI

Конектори : 1x SPI TPM Header; 1x Chassis Intrusion and Speaker Header; 2x RGB LED Headers; 1x 24 pin ATX and 1x 8 pin 12V Power connector; 1x Front Panel Audio Conn.; 2x USB 2.0 Headers; 1x USB 3.2 Gen1 Headers; 1x FrontPanel Type-C USB 3.2 Gen2x2 Header (20Gb/s)

Слотове : 11th Gen: 1x PCI Express 4.0 x16 Slot; 10th Gen: 1x PCI Express 3.0 x16 Slot; 2x PCI Express 3.0 x1 Slots; 1x M.2 Socket(Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT); 15µ Gold Contact in VGA PCIe Slot (PCIE1)

M.2 слот : 1x Hyper M.2 Socket(M2_1), M Key type2242/2260/2280 M.2 PCIe module up to Gen4x4(64Gb/s)-with 11thGen Intel or Gen3 x4(32Gb/s)-with 10thGen Intel; 1x Ultra M.2 Socket(M2_2), M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCIe module up to Gen3 x4(32Gb/s

Интерфейс : 3x Antenna Mounting Points; 1x PS/2 Mouse/Keyboard Port; 1x HDMI Port; 1x DisplayPort 1.4; 1x Optical SPDIF Out Port; 4x USB 3.2 Gen1 Ports; 2x USB 2.0 Ports; 1x RJ-45 LAN Port with LED; HD Audio Jacks: RearSpeaker/Central/Bass/Line-in/FrontSpeaker/Mic

Софтуер : ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC

Операционна система : Microsoft Windows 10 64-bit

Форм-фактор : Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Специални функции : ASRock USB 3.2 Gen2, ASRock Super Alloy, 2.5G LAN, ASRock Steel Slot, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker, ASRock Full Spike Protection(for all USB,Audio,LAN Ports), ASRock Live Update&APP Shop
