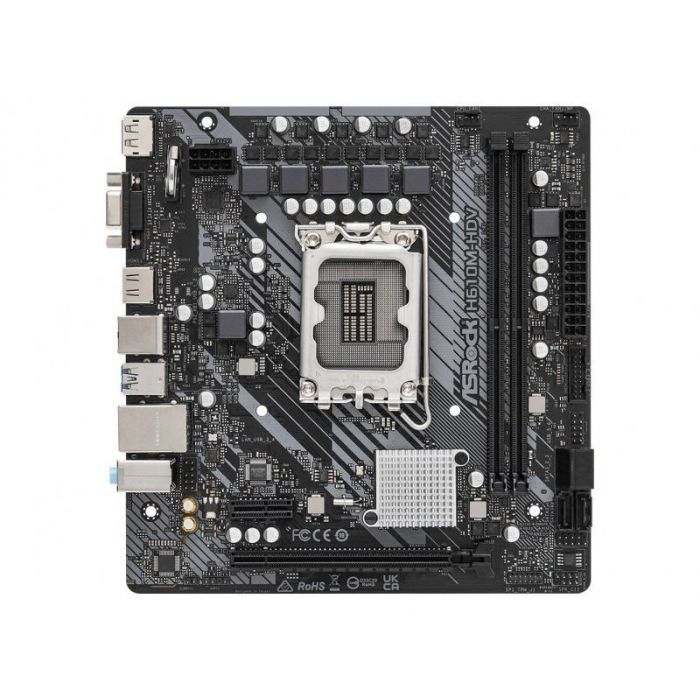

Дънна платка ASRock H610M-HDV Intel LGA 1700 M-ATX, 2x D4 3200, 4x SATA3

Overview

Supports 12th Gen Intel® Core™ Processors (LGA1700)

5 Phase Power Design

Supports DDR4 3200MHz

1 PCIe 4.0 x16, 1 PCIe 3.0 x1

Graphics Output Options: HDMI, DisplayPort, D-Sub

Realtek ALC887/897 7.1 CH HD Audio Codec

4 SATA3

4 USB 3.2 Gen1 (2 Rear, 2 Front)

6 USB 2.0 (4 Rear, 2 Front)

Realtek Gigabit LAN

Specifications:

ASRock Super Alloy - Premium Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU:

Supports 12th Gen Intel® Core™ Processors (LGA1700)

5 Power Phase design

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology

Chipset: Intel® H610

Memory:

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

Supports DDR4 non-ECC, un-buffered memory up to 3200

Supports ECC UDIMM memory modules (operate in non-ECC mode)

Max. capacity of system memory: 64GB

Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Graphics:

Intel® Xe Graphics Architecture (Gen 12)

Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio:

7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)

Supports Surge Protection

LAN:

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

1 x Realtek RTL8111H

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Slots:

1 x PCIe Gen4x16 Slot*

1 x PCIe Gen3x1 Slot

*Supports NVMe SSD as boot disks

Storage:

4 x SATA3 6.0 Gb/s Connectors

Connector:

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)*

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

*The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O:

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x HDMI Port

1 x DisplayPort 1.4

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

4 x USB 2.0 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI

Support CD: Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories:

Quick Installation Guide, Support CD, I/O Shield

2 x SATA Data Cables

Form Factor:

Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm

Solid Capacitor design

OS: Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications: FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
