Дънна платка ASUS PRIME A520M-K, AM4, DDR4

Наличен
SKU
90MB1500-M0EAY0
Влезте в акаунта си, за да видите актуалните наличности и цени.

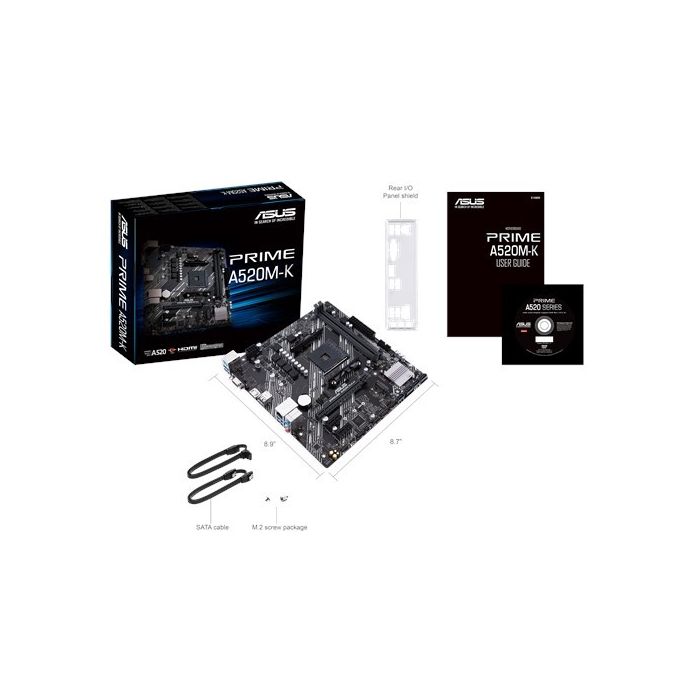

Дънна платка ASUS PRIME A520M-K, AM4, DDR4

Graphics: 1 x D-Sub; 1 x HDMI 2.1(4K@60HZ)

• CPU`s supported: Build in AMD AM4 Socket Processors *

• Chipset: AMD A520

• Expansion Slots: 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1

• Storage: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports; 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD A520 Chipset : 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

• Memory type: 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.

• I/O: 1 x PS/2 keyboard/mouse combo port(s); 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 4 x USB 3.2 Gen 1 (blue) Type-A; 2 x USB 2.0; 3 x Audio jack(s)

• Connectors: 1 x CPU Fan connector(s); 1 x Chassis Fan connector(s); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x SPI TPM header; 4 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header; 1 x Speaker connector

• Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature : - Audio Shielding; - Dedicated audio PCB layers; * Choose the chassis with HD audio module in fr

• LAN: Realtek RTL8111H 1Gb Ethernet; ASUS LANGuard

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

• Form Factor: mATX Form Factor; 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

• OS: Windows® 10 64-bit

• Warranty: 36 Months

Повече информация qqq
Производител Asus
Цокъл на процесора AM4
Чипсет AMD A520
Технология на паметта DDR4
Общ брой слотове за памет 2
Максимално количество памет 64GB
LAN да
Брой HDMI интерфейси 1
USB портове 4
Аудио да
Форм фактор mATX
Гаранционни условия (месец) 36

Повече информация
+

Повече информация qqq
Производител Asus
Цокъл на процесора AM4
Чипсет AMD A520
Технология на паметта DDR4
Общ брой слотове за памет 2
Максимално количество памет 64GB
LAN да
Брой HDMI интерфейси 1
USB портове 4
Аудио да
Форм фактор mATX
Гаранционни условия (месец) 36
