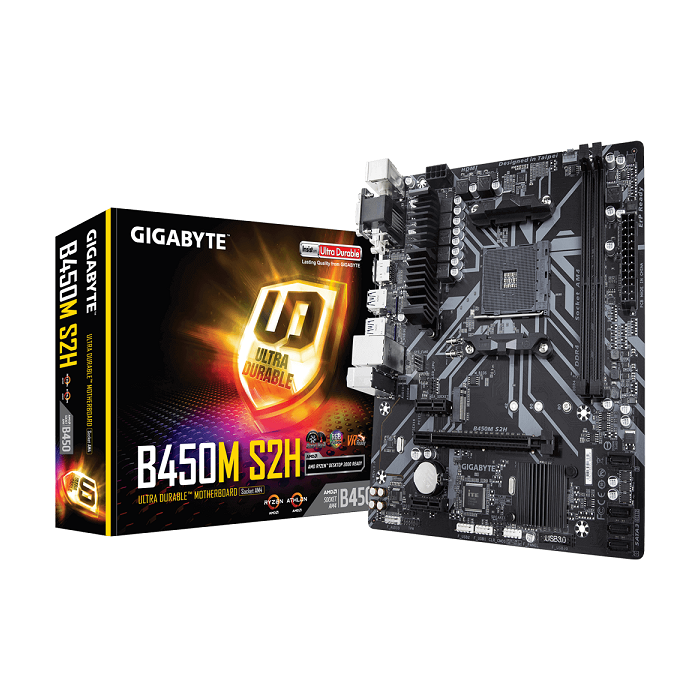

Дънна платка Gigabyte B450M-S2H, DDR4, Socket AM4

Дънна платка Gigabyte B450M-S2H
Chipset type: AMD B450
CPU socket: AM4
Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Support 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory. Dual channel memory architecture. Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
1 x PCI Express 3.0 x16 slot, running at x16
2 x PCI Express 2.0 x1 slots
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) - Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Realtek® GbE LAN chip (10/100/1000 Mbit)
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
1 x PS/2 keyboard port, 1 x PS/2 mouse port, 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port
Micro ATX
