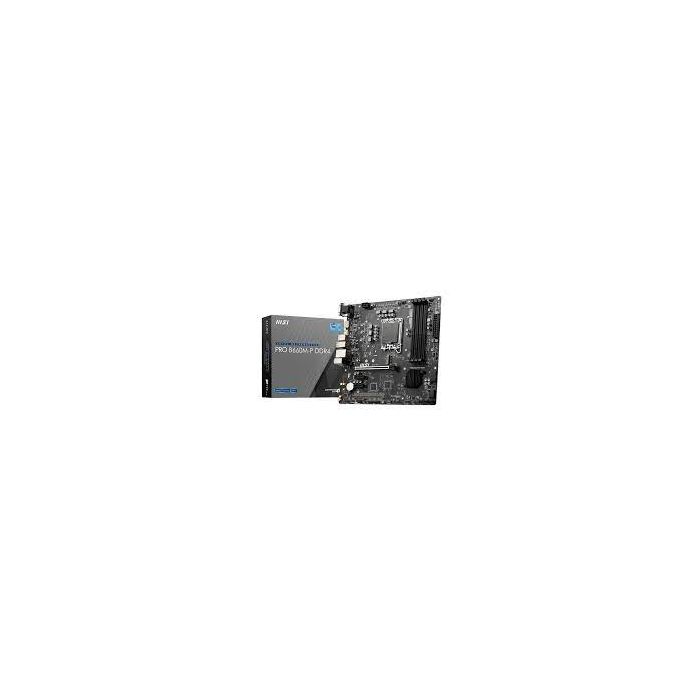

Дънна платка MSI Pro B660M-P DDR4 LGA1700
CPU
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
CHIPSET Intel® B660 chipset
MEMORY
4x DDR4 memory slots, supporting up to 128GB1
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
1x PCIe x16 slot PCI_E1 (From CPU)
Supports up to PCIe 4.0 x16
2x PCIe x1 slots
PCI_E2 & PCI_E3 (Fom B660 chipset)
Supports up to PCIe 3.0
ONBOARD GRAPHICS
1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1/2
1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz1/2
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed.
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN1x Realtek® RTL8111H 1Gbps LAN controller
STORAGE
4x SATA 6Gb/s ports (From B660 chipset) 1
1x M.2 slot (Key M)
M2_1 slot (From B660 Chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
FORM FACTOR
M-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS FEATURES
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
POWER CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS
x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
1x USB 2.0 Type-A connector (From B660 chipset)
Supports additional 2 USB 2.0 ports
FAN CONNECTORS
1x 4-pin CPU fan connector
1x 4-pin system fan connector
SYSTEM CONNECTORS
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x parallel port connector
1x Serial port
JUMPERS
1x Clear CMOS jumper
LED FEATURE
4x EZ Debug LED
BACK PANEL CONNECTORS VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A
Тип продукт | Дънна платка |
---|---|
Производител | MSI |
Цокъл на процесора | s. LGA 1700 |
Чипсет | B660 |
Технология на паметта | DDR4 |
Общ брой слотове за памет | 4 |
Максимално количество памет | 128GB |
LAN | да |
Видеокарта | ONBOARD GRAPHICS |
Брой HDMI интерфейси | да |
Аудио | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
Форм фактор | mATX |
Гаранционни условия (месец) | 36 |
