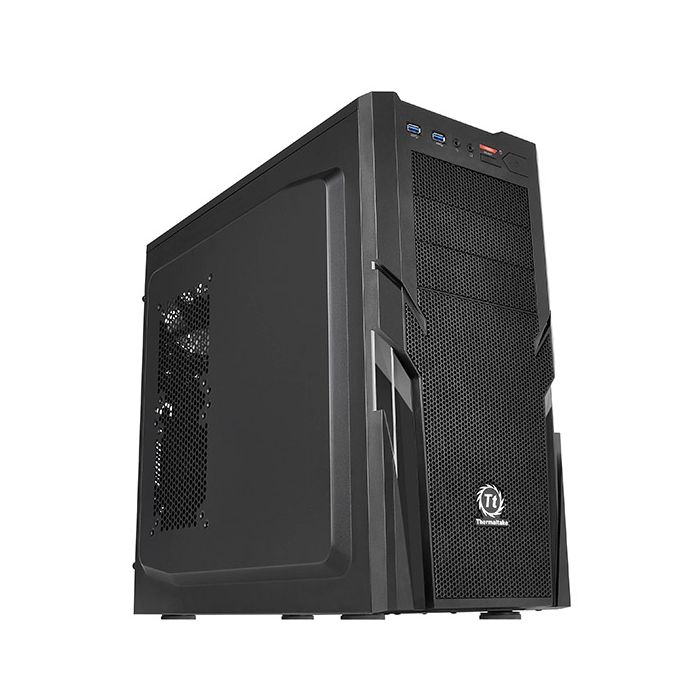

Commander G series is the new gaming budget case series, designed for users who need a large interior space for high-end hardware and expansion while having a conservative budget. Like all Thermaltake gaming cases, Commander G41 is designed to ease system builds, it comes with standard features like the tool-free drive bay design, removable drive cage, multiple fans mounting options and the support for internal and external liquid cooling solution and advance cable management.
Gear toward performance pioneers and eSports adventurers with the goal of “Space is of the Essence” in mind by incorporating an outsize body structure with convex and perforated panel design to provide a vast interior space for the ultimate aeration and extreme high-end hardware components compatibility.
Standard 3 x 5.25” and 6 x 3.5”/2.5” with innovative tool-free drive bay design minumized the hassels of installing and removing accessories and storage devices.
G41 delivers the most scalable graphics platform in a mid-tower category, with 8 + 1 PCI-E expansion slots which support for both Native 4-way ATI CrossFireX™ and Nvidia SLI™. Additionally, the removable drive cage can support VGA card up to 410mm.
Beside the preinstalled one 120mm rear exhaust fan, G41 has six more optional 120mm fans mounting areas to optimize system ventilation with intake dust filters.
Beside the mounting holes for cooling solutions, the backplate has a large CPU cut-out and pre-mounting holes that support motherboards size up to standard ATX and CPU cooler installation, with the aid of extra convex side panel G41 has the space for Advanced Cable Management up to 38mm.
Enables user to build a complete high-end solution including a 240mm radiator liquid cooling system with long graphic card. It protects user’s hardware and increase CPU’s overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
Front (intake) : (optional)
120 x 120 x 25 mm x 1
Rear (exhaust) :120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Top (exhaust) :(optional)
200 x 200 x 30 mm, or
140 x 140 x 25 mm , or
120 x 120 x 25 mm x 2
Side (intake) : (optional)
120 x 120 x 25 mm x 2
Bottom (intake) : (optional)
120 x 120 x 25 mm
3 x 5.25’’,
1 x 3.5’’ (Converted from one 5.25” drive bay)
6 x 3.5’’ or 6 x 2.5’’
Expansion Slots: 8 + 1
Motherboards: 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port: USB 3.0 x 2, HD Audio x 1
CPU cooler height limitation: 185mmVGA length limitation: 270mm / 410mm (remove HDD cage)
Radiator Support Top: 1 x 120mm , or 1 x 240mm, Rear: 1 x 120mm
