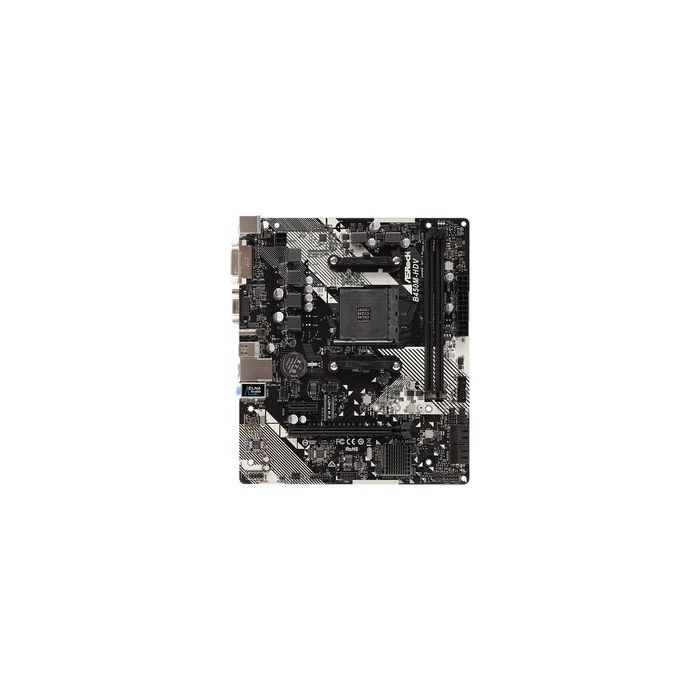

Дънна платка ASRock B450M-HDV R4.0 - motherboard - micro ATX - Socket AM4 - AMD B450
Изчерпано количество
SKU
90-MXB9N0-A0UAYZ
ASRock B450M-HDV R4.0 - motherboard - micro ATX - Socket AM4 - AMD B450
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Micro ATX | |
| Compatible Processors | Ryzen | |
| Chipset Type | AMD B450 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC, ECC | |
| Supported RAM Speed | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.) | |
| Processor Socket | Socket AM4 | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 2 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.1 Gen 1 - header | |
| RAM | ||
| Features | Dual channel memory architecture | |
| Max Supported Size | 32 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC887 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Realtek RTL8111H | |
| Network | Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 1 x PCIe 2.0 x1, 2 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 | |
| Storage | Serial ATA-600 (RAID), Ultra M.2 socket | |
| USB / FireWire | USB 3.1 Gen 1 | |
| Storage Ports | 4 x SATA-600 (RAID), 1 x Ultra M.2 | |
| USB / FireWire Ports Configuration (Active) | 4 x USB 3.1 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 2 x USB 3.1 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | ASRock A-Tuning, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN | |
| Размери и Тегло | ||
| Width | 23 cm | |
| Depth | 20,1 cm | |
| Обслужване и поддръжка | ||
| Type | 3-year warranty | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
