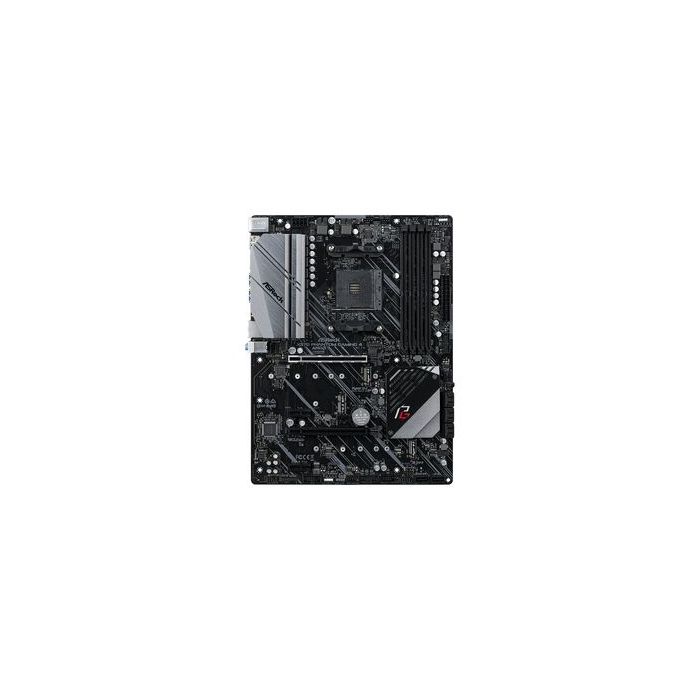

Дънна платка ASRock X570 Phantom Gaming 4, ATX - Socket AM4 - AMD X570

Изчерпано количество

SKU

90-MXBAU0-A0UAYZ

Влезте в акаунта си, за да видите актуалните наличности и цени.

ASRock X570 Phantom Gaming 4 - motherboard - ATX - Socket AM4 - AMD X570

Преминете към края на галерията на изображенията

С доставка

Преминете към началото на галерия със снимки

Добави към Списък с желани продукти

Детайли

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	ATX
Compatible Processors	Ryzen
Chipset Type	AMD X570
Supported RAM Technology	DDR4 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed	3200 MHz, 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.)
Processor Socket	Socket AM4
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x audio - header, 1 x serial - header, 2 x USB 2.0 - header, 1 x Thunderbolt - header, 4 x USB 3.2 Gen 1 - header
RAM
Features	Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size	128 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio, Premium Blu-ray audio support
Audio Codec	Realtek ALC1200
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network Controller	Intel I211-AT
Network	Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 4 x DIMM 288-pin, 1 x M.2 socket (Key E), 2 x PCIe 4.0 x1, 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x4 mode (with Ryzen series CPUs Matisse); PCIe 3.0 x16/x4 mode (with Ryzen series CPUs Pinnacle Ridge); PCIe 3.0 x8/x4 mode (with Ryzen series CPUs Picasso))
Интерфейси
Storage Interfaces	SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 1 x M.2 - 1 devices, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - 1 devices
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2
Storage Ports	8 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)	4 x USB 3.2 Gen 1 + 2 x USB 2.0
Софтуер
Software Included	ASRock Polychrome SYNC, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Размери и Тегло
Width	30,5 cm
Depth	22,9 cm
