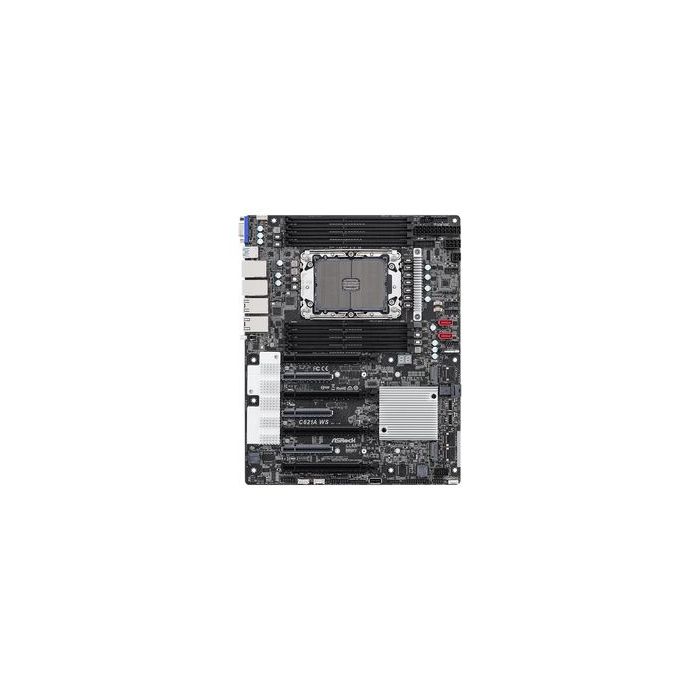

Дънна платка ASRock C621A WS, ATX - Socket P+ - C621A
Изчерпано количество
SKU
90-MXBGU0-A0UAYZ
ASRock C621A WS - motherboard - ATX - Socket P+ - C621A
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | ATX | |
| Compatible Processors | Xeon | |
| Chipset Type | Intel C621A | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | ECC | |
| Supported RAM Speed | 3200 MHz, 2400 MHz, 1866 MHz, 2133 MHz, 2666 MHz, 2933 MHz | |
| Processor Socket | Socket P+ | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Optane DC Persistent, Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered | |
| RAM Slots | 8 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 2 x USB-C Gen2 - header, 1 x LPC - header, 1 x serial - header, 2 x USB 2.0 - header, 1 x USB 2.0 - Type A, 2 x SGPIO - header, 2 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Supports Intel Optane DC Persistent Memory (DCPMM), 8-channel memory architecture | |
| Max Supported Size | 256 GB | |
| Видео изход | ||
| Type | Graphics adapter | |
| Graphics Processor | ASPEED AST2500 | |
| Работа в мрежа | ||
| Network Controller | Intel I210 / Intel X710-AT2 | |
| Network | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 3 x PCIe 4.0 x8, 3 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)), 8 x DIMM 288-pin, 1 x PCIe 4.0 x16 | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 1 x mini-SAS HD - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 -connectors: 2 x M.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 1, USB-C Gen2 | |
| Storage Ports | 1 x Mini-SAS HD, 2 x SATA-600, 2 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 4 x USB 3.2 Gen 1 + 1 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 2 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| Софтуер | ||
| Software Included | Drivers & utilities, Antivirus | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 24,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
