Дънна платка ASRock B660 Pro RS, ATX - LGA1700 Socket - B660
Изчерпано количество
SKU
90-MXBHV0-A0UAYZ

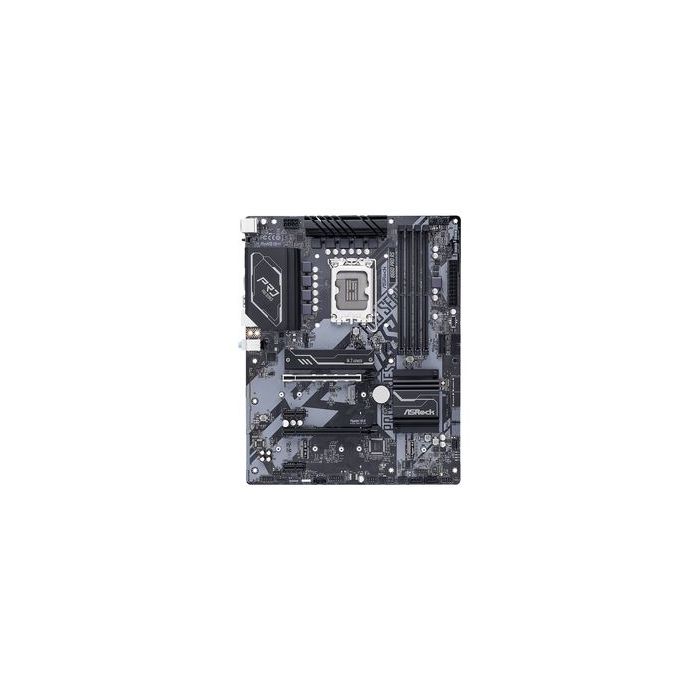

ASRock B660 Pro RS - motherboard - ATX - LGA1700 Socket - B660
Общи Характеристики | ||
---|---|---|
Packaged Quantity | 1 | |
Процесор | ||
Installed Qty | 0 | |
Max Supported Qty | 1 | |
Дънна платка | ||
Form Factor | ATX | |
Chipset Type | Intel B660 | |
Supported RAM Technology | DDR4 SDRAM | |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) | |
Supported RAM Speed | 4800 MHz (O.C.) | |
Processor Socket | LGA1700 Socket | |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector | |
Supported RAM (Registered or Buffered) | Unbuffered | |
RAM Slots | 4 DIMM slots | |
Интерфейси | ||
Internal Interfaces | 1 x audio - header, 1 x serial - header, 2 x USB 2.0 - header, 1 x Thunderbolt - header, 1 x USB-C Gen 1 - header, 4 x USB 3.2 Gen 1 - header | |
RAM | ||
Features | Intel Extreme Memory Profiles (XMP) 2.0, Dual channel memory architecture, Supported ECC modules operate in non-ECC mode | |
Max Supported Size | 128 GB | |
Видео изход | ||
Type | Graphics adapter (CPU required) | |
Аудио изход | ||
Type | Sound card | |
Compliant Standards | High Definition Audio | |
Audio Codec | Realtek ALC897 | |
Audio | High Definition Audio (8-channel) | |
Работа в мрежа | ||
Network Controller | Intel I219V | |
Network | Gigabit Ethernet | |
Слотове за разширение | ||
Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode), 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16 | |
Интерфейси | ||
Storage Interfaces | PCIe 4.0 -connectors: 2 x M.2, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | |
Storage | Serial ATA-600 (RAID), M.2 socket | |
USB / FireWire | USB 3.2 Gen 1, USB-C Gen1 | |
Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 | |
USB / FireWire Ports Configuration (Active) | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
Софтуер | ||
Software Included | ASRock Polychrome SYNC, ASRock A-Tuning, Antivirus (Trial version), Drivers & utilities, ASRock XFast LAN | |
Размери и Тегло | ||
Width | 30,5 cm | |
Depth | 24,4 cm | |
Обслужване и поддръжка | ||
Type | 3-year warranty |
Тип продукт | Дънна платка |
---|---|
Производител | AsRock |
Повече информация
Тип продукт | Дънна платка |
---|---|
Производител | AsRock |
