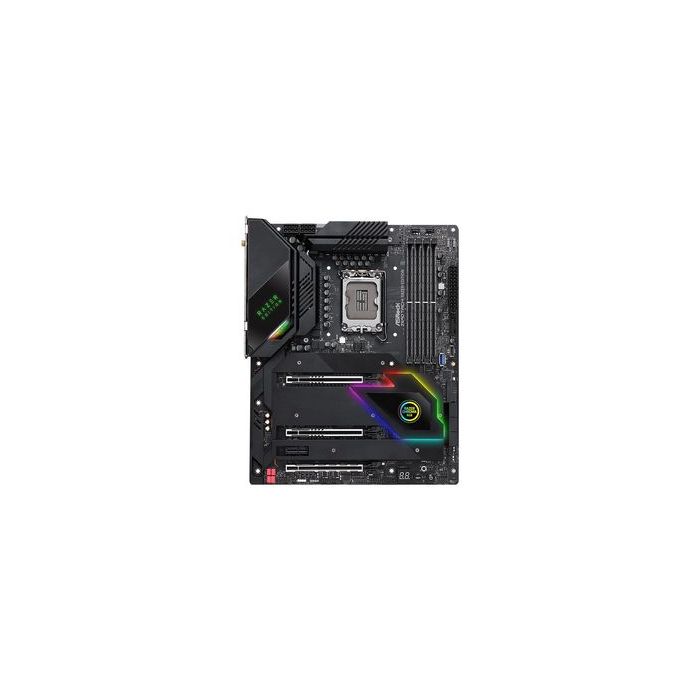

Дънна платка ASRock Z690 Taichi Razer Edition, ATX - LGA1700 Socket - Z690
Изчерпано количество
SKU
90-MXBIA0-A0UAYZ
ASRock Z690 Taichi Razer Edition - motherboard - ATX - LGA1700 Socket - Z690
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | ATX | |
| Chipset Type | Intel Z690 | |
| Supported RAM Technology | DDR5 SDRAM | |
| Supported RAM Integrity Check | Non-ECC | |
| Supported RAM Speed | 6400 MHz (O.C.) | |
| Processor Socket | LGA1700 Socket | |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A, 1 x USB-C Gen 2x2 - header, 1 x audio - header, 3 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio, Premium Blu-ray audio support | |
| Audio Codec | Realtek ALC1220 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth, Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 3 x PCIe 5.0 x16 (dual: x8 mode; triple: x8, x8, x4 mode; single card: x16 mode), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x M.2 socket (Key E) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 1 x 7pin Serial ATA | |
| Storage | Hyper M.2 socket, Serial ATA-600, Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4 | |
| Storage Ports | 6 x SATA-600 (RAID), 1 x SATA-600, 2 x Hyper M.2, 1 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 2 x USB4 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 3 x USB 2.0 | |
| Софтуер | ||
| Software Included | ASRock Polychrome SYNC, Killer Control Center, ASRock A-Tuning, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 24,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
