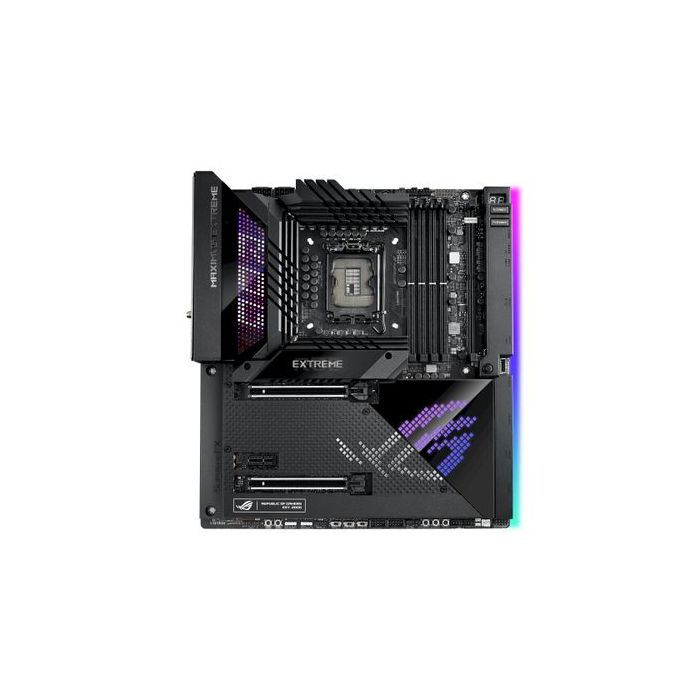

Дънна платка ASUS ROG MAXIMUS Z690 EXTREME - Extended ATX - Socket LGA 1700 - Intel Z690
Изчерпано количество
SKU
90MB18H0-M0EAY0
ASUS Mainboard ROG MAXIMUS Z690 EXTREME - Extended ATX - Socket LGA 1700 - Intel Z690
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Extended ATX | |
| Chipset Type | Intel Z690 | |
| Supported RAM Technology | DDR5 SDRAM | |
| Supported RAM Integrity Check | Non-ECC | |
| Supported RAM Speed | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.) | |
| Processor Socket | LGA1700 Socket | |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x USB-C Gen 2x2 - header, 1 x Thunderbolt 4 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | DTS Sound Unbound, High Definition Audio | |
| Audio Codec | SupremeFX (ALC4082) | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2, 10 Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1 | |
| Интерфейси | ||
| Storage Interfaces | PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -connectors: 2 x 7pin Serial ATA, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | |
| Storage | Serial ATA-600, Serial ATA-600 (RAID), M.2 socket | |
| RAID Features | Intel Rapid Storage Technology | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4, USB-C Gen2 | |
| Storage Ports | 4 x SATA-600 (RAID), 2 x SATA-600, 5 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB4 + 1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB4 + 1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year license), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year license), Sonic Suite Companion, MyAsus, ROG True Voltician, ROG CPU-Z, ASUS AI Suite III, Drivers & utilities, ASUS Turbo App, WinRAR | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 27,7 cm | |
| Обслужване и поддръжка | ||
| Type | 3-year warranty | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
