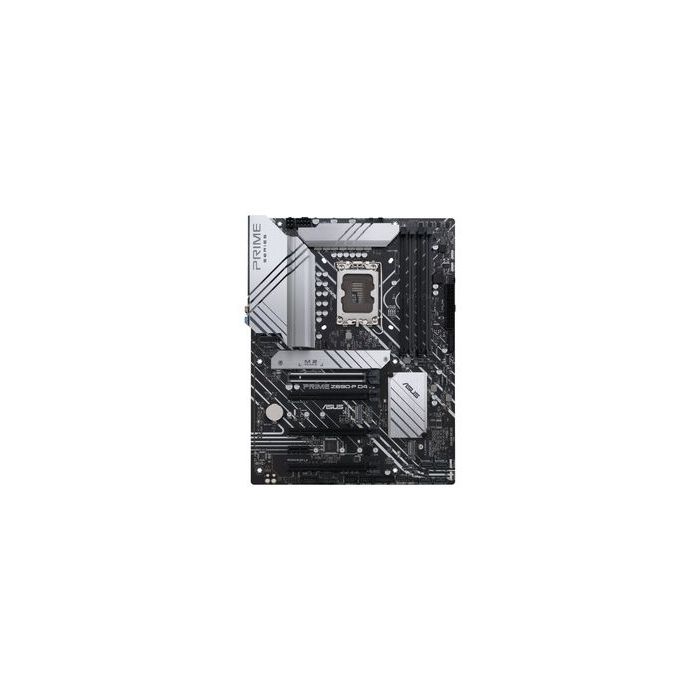

Дънна платка ASUS PRIME Z690-P D4-CSM, ATX - LGA1700 Socket - Z690
Наличен
SKU
90MB18P0-M0EAYC
ASUS PRIME Z690-P D4-CSM - motherboard - ATX - LGA1700 Socket - Z690
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | ATX | |
| Chipset Type | Intel Z690 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC | |
| Supported RAM Speed | 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.), 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.) | |
| Processor Socket | LGA1700 Socket | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header, 1 x USB-C Gen 1 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header | |
| RAM | ||
| Features | Intel Extreme Memory Profiles (XMP), Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network | 2.5 Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 1 x PCIe 5.0 x16, 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x16 (x4 mode), 1 x M.2 socket (for Intel CNVi wireless module), 1 x PCIe 4.0 x16 (x4 mode) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| RAID Features | Intel Rapid Storage Technology | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C Gen1 | |
| Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Norton AntiVirus (Trial), ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, Drivers & utilities, WinRAR | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 23,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
