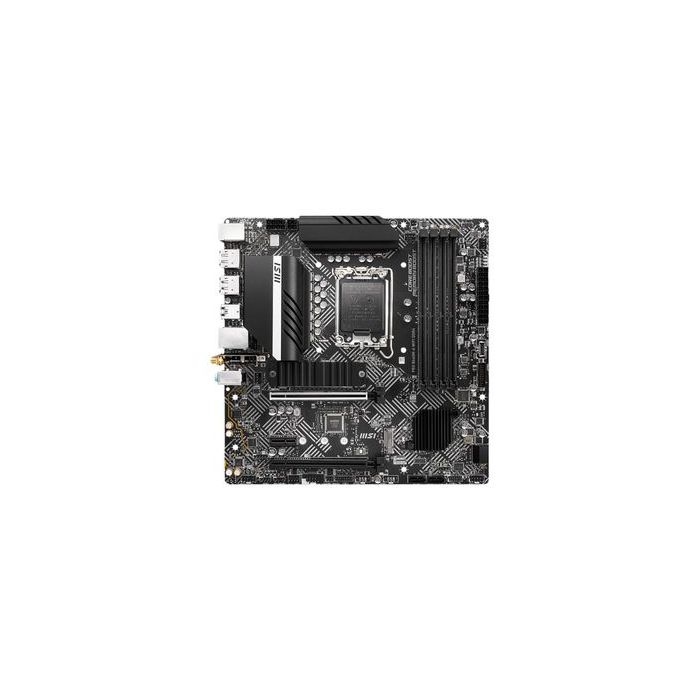

Дънна платка MSI PRO B660M-A WIFI DDR4, micro ATX - LGA1700 Socket - B660
Изчерпано количество
SKU
7D43-002R
MSI PRO B660M-A WIFI DDR4 - motherboard - micro ATX - LGA1700 Socket - B660
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Micro ATX | |
| Chipset Type | Intel B660 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC | |
| Supported RAM Speed | 4800 MHz (O.C.), 3200 MHz, 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.) | |
| Processor Socket | LGA1700 Socket | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Intel Extreme Memory Profiles (XMP), Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC897 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Realtek RTL8125BG | |
| Network | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 4.0 x16 | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| RAID Features | Intel Smart Response Technology | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1 | |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Drivers & utilities | |
| Размери и Тегло | ||
| Width | 24,4 cm | |
| Depth | 24,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | MSI |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | MSI |
