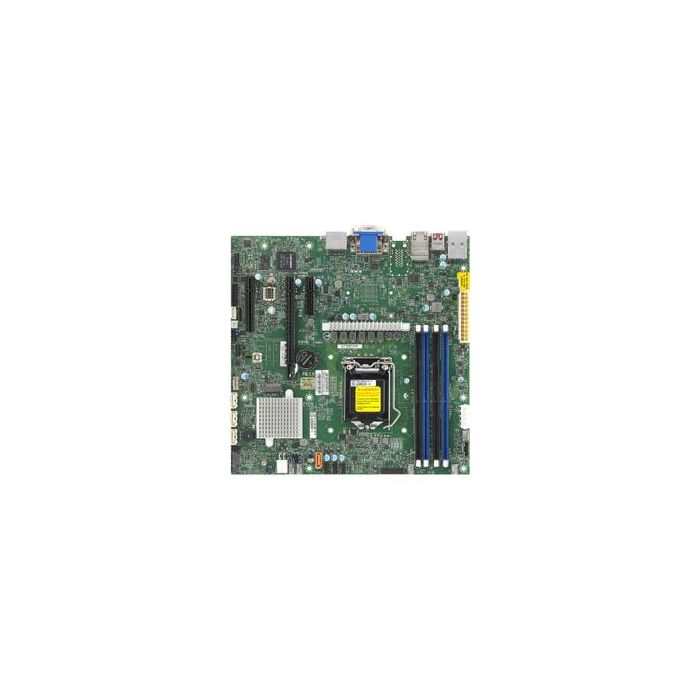

Дънна платка SUPERMICRO X12SCZ-QF, micro ATX - LGA1200 Socket - Q470
Наличен
SKU
MBD-X12SCZ-QF-B
SUPERMICRO X12SCZ-QF - motherboard - micro ATX - LGA1200 Socket - Q470
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Micro ATX | |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 | |
| Chipset Type | Intel Q470 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC | |
| Supported RAM Speed | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz | |
| Processor Socket | LGA1200 Socket | |
| Power Connectors | 24-pin main power connector, DC-in power connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 2 x USB 3.2 Gen 2 - header, 1 x serial - header, 6 x USB 2.0 - header | |
| RAM | ||
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | Graphics adapter | |
| Graphics Processor | ASPEED AST2500 | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC888S | |
| Audio | High Definition Audio | |
| Работа в мрежа | ||
| Network Controller | Intel I210-AT / I219LM | |
| Network | 2 x Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 4 x DIMM 288-pin (1.2 V), 1 x PCIe 3.0 x8 (x4 mode) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 2 | |
| Storage Ports | 4 x SATA-600 (RAID), 1 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 4 x USB 3.2 Gen 2 | |
| USB / FireWire Ports Configuration (Headers) | 2 x USB 3.2 Gen 2 + 6 x USB 2.0 | |
| Размери и Тегло | ||
| Width | 24,38 cm | |
| Depth | 24,38 cm | |
| Обслужване и поддръжка | ||
| Type | 3-year warranty | |
| Разни | ||
| Package Type | Bulk | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Supermicro |
