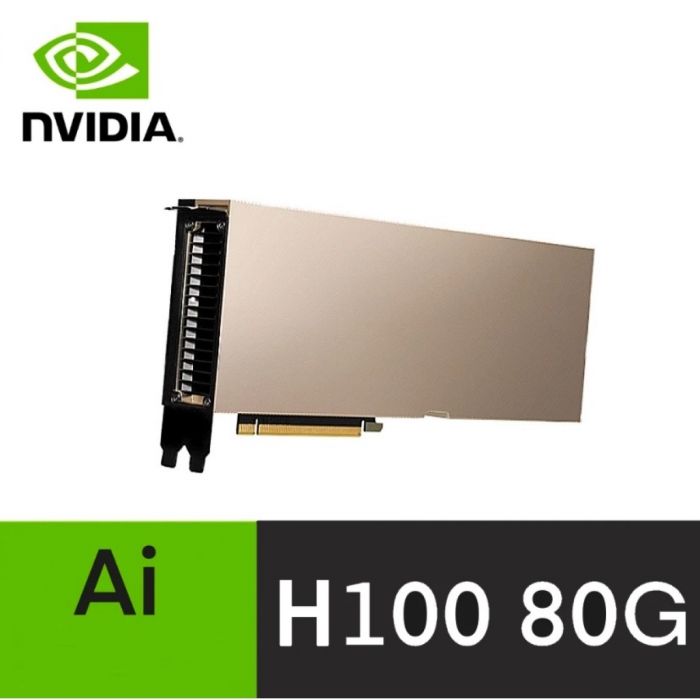

Видео карта NVIDIA H100 PCIe Tensor Core Graphics Card, 80GB HBM2 Memory, PCIe

The H100 PCIe 80 GB was a professional graphics card by NVIDIA, launched in October 2022. Built on the 5 nm process, and based on the GH100 graphics processor, the card does not support DirectX. Since H100 PCIe 80 GB does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The GH100 graphics processor is a large chip with a die area of 814 mm² and 80,000 million transistors. Unlike the fully unlocked H100 SXM5 96 GB, which uses the same GPU but has all 16896 shaders enabled, NVIDIA has disabled some shading units on the H100 PCIe 80 GB to reach the product's target shader count. It features 14592 shading units, 456 texture mapping units, and 24 ROPs. Also included are 456 Tensor Cores which help improve the speed of machine learning applications with support for the INT8 and FP8 data formats. NVIDIA has paired 80 GB HBM2e memory with the H100 PCIe 80 GB, which are connected using a 5120-bit memory interface. The GPU is operating at a frequency of 1095 MHz, which can be boosted up to 1755 MHz, memory is running at 1593 MHz.
Being a dual-slot card, the NVIDIA H100 PCIe 80 GB draws power from 1x 16-pin power connector, with power draw rated at 350 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. H100 PCIe 80 GB is connected to the rest of the system using a PCI-Express 5.0 x16 interface. The card dual-slot cooling solution.
